Paper Bag Making Solution
Engineered Paper Bag
Production Systems
by YASEN
Build reliable, high-speed paper bag production lines for shopping, food, gift, bakery, and takeaway packaging. YASEN delivers integrated solutions for roll-fed, sheet-fed, handle pasting, tube forming, bottom folding, and bottom gluing.
- 30-280
- Bags per minute
- 80-450 mm
- Bag width range
- 45-150 gsm
- Paper weight
- CM / CMFP
- Machine series
The Product

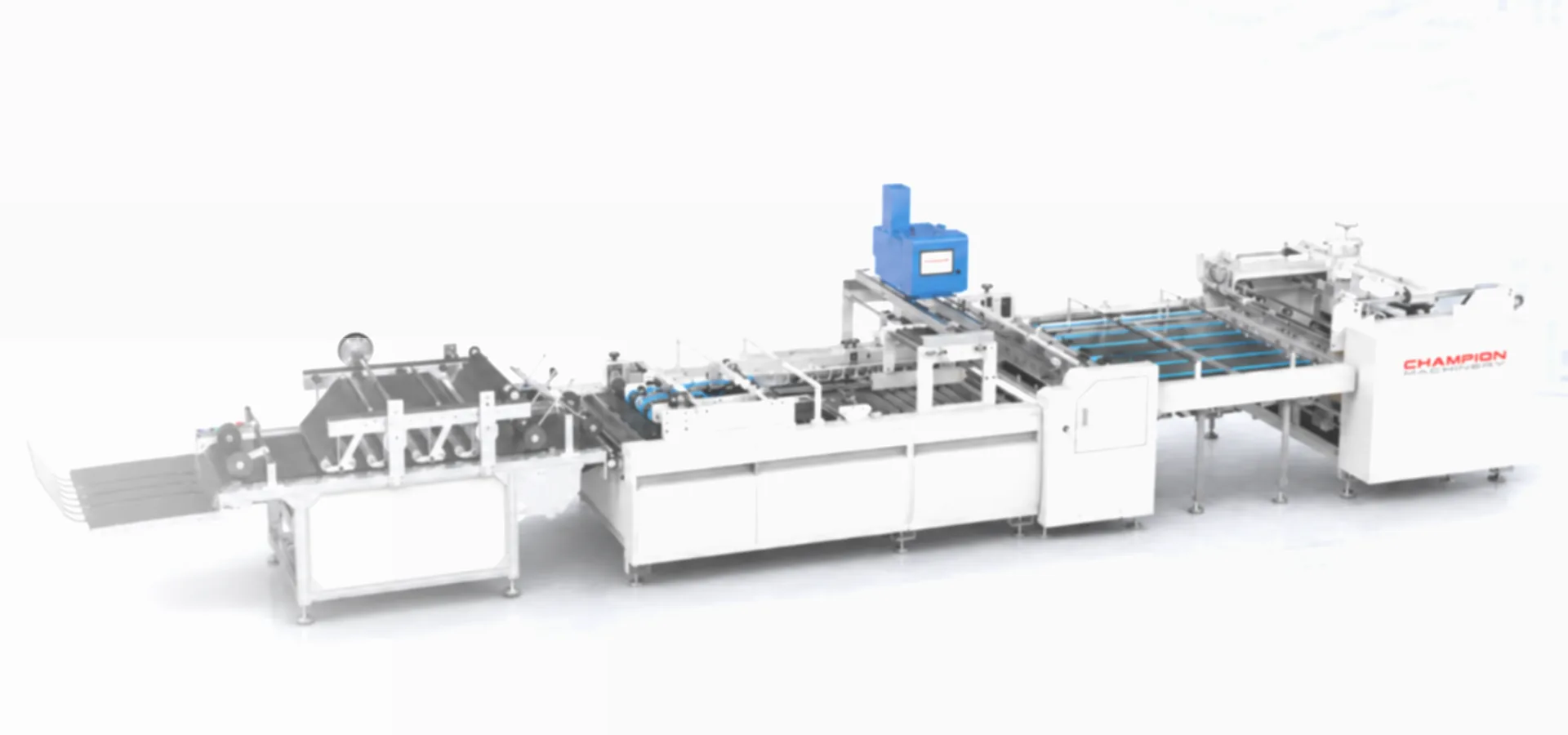

See the production line in motion
Watch how paper feeding, forming, folding, gluing, and finished bag collection work together on a complete line. Use the model section below to match your bag size, handle style, speed target, and automation plan.
Machine Selection
Choose by the paper bag you want to produce
Start from bag type, then confirm size range, paper gsm, handle style, and required automation level.
01
Luxury shopping bags
For apparel, gift, boutique, and premium retail packaging with top card or bottom card options.
Luxury lines 02Tube forming
Prepare accurate paper bag tubes before bottom folding and gluing on modular production lines.
Tube makers 03Bottom forming
Choose bottom folding and bottom gluing equipment by tube width, gusset range, and speed.
Bottom machines 04Paper bag bottom gluing machine
An automatic machine that applies adhesive and forms the bottom of paper bags during production.
Bottom gluing machine models
YASEN machine models
Roll-fed Paper Bag Machines
Product selector
Shopping bag series
CM-330T
Inline twisted rope handle paper bag machine for medium retail bags, boutique packaging, gift bags, and kraft shopping bags.
- Twisted rope handle shopping bags
- Retail, apparel, gift, and brand packaging bags
- Machine type
- Shopping bag, twisted rope handle inline
- Cutting length
- 270-530 mm
- Bag width
- 120-330 mm
- Bottom width
- 70-180 mm
- Paper weight
- 80-130 gsm patch paper
- Production speed
- 30-200 bags/min
- Power
- 380V 3Phase 40 kW
- Machine size
- 15000 x 6000 x 2700 mm
Large shopping bag series

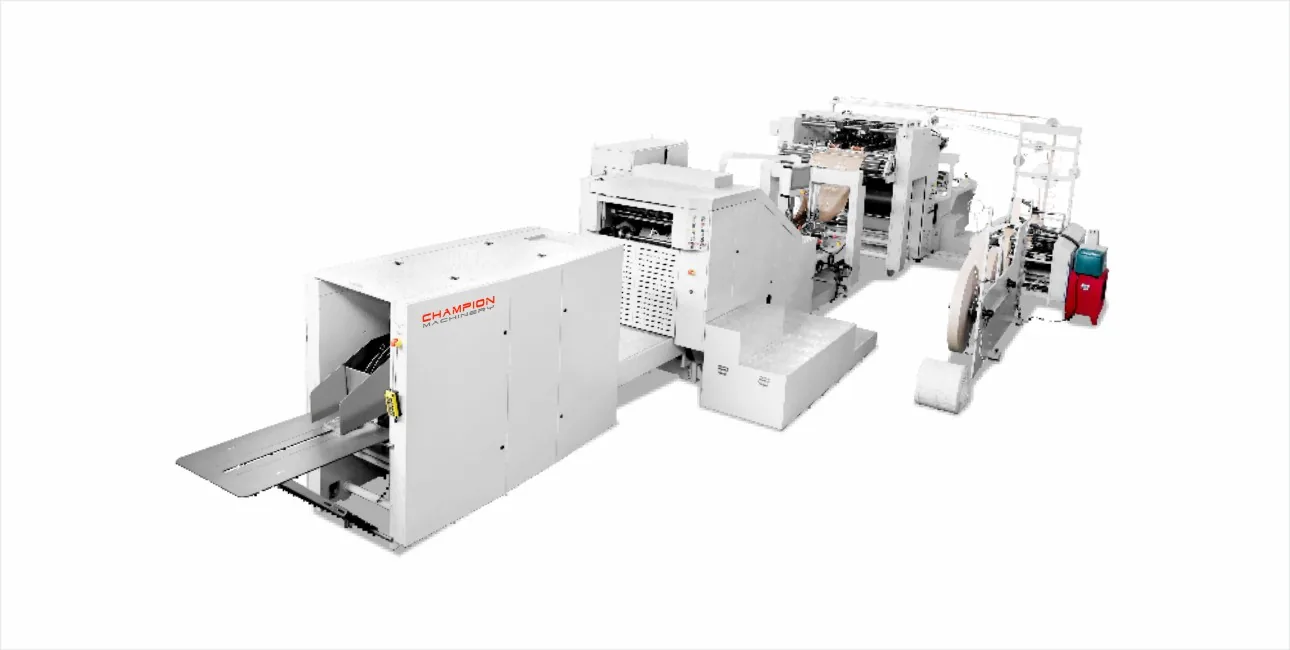

CM-450AT
Wider inline twisted rope handle machine for larger shopping bags and brand packaging where bag width and bottom depth matter.
- Large twisted handle shopping bags
- Fashion, supermarket, gift, and premium carrier bags
- Machine type
- Shopping bag, twisted rope handle inline
- Cutting length
- 300-630 mm / 300-530 mm with handle
- Bag width
- 220-450 mm / 240-450 mm with handle
- Bottom width
- 90-200 mm / 100-200 mm with handle
- Paper weight
- 80-140 gsm
- Production speed
- 30-150 bags/min
- Power
- 380V 3Phase 43 kW
- Machine size
- 15000 x 6000 x 2700 mm
Handle option series
CM-450ATF
Shopping bag line for round rope or flat handle configurations, suited to presentation bags and larger retail carrier bags.
- Round rope handle paper bags
- Flat paper handle shopping and gift bags
- Machine type
- Shopping bag, round / flat handle
- Cutting length
- 300-630 mm / 300-530 mm with handle
- Bag width
- 220-450 mm / 240-450 mm with handle
- Bottom width
- 90-200 mm / 100-200 mm with handle
- Paper weight
- 80-140 gsm
- Production speed
- 30-150 bags/min
- Power
- 380V 3Phase 43 kW
- Machine size
- 15000 x 6000 x 2700 mm
Square bottom roll-fed series

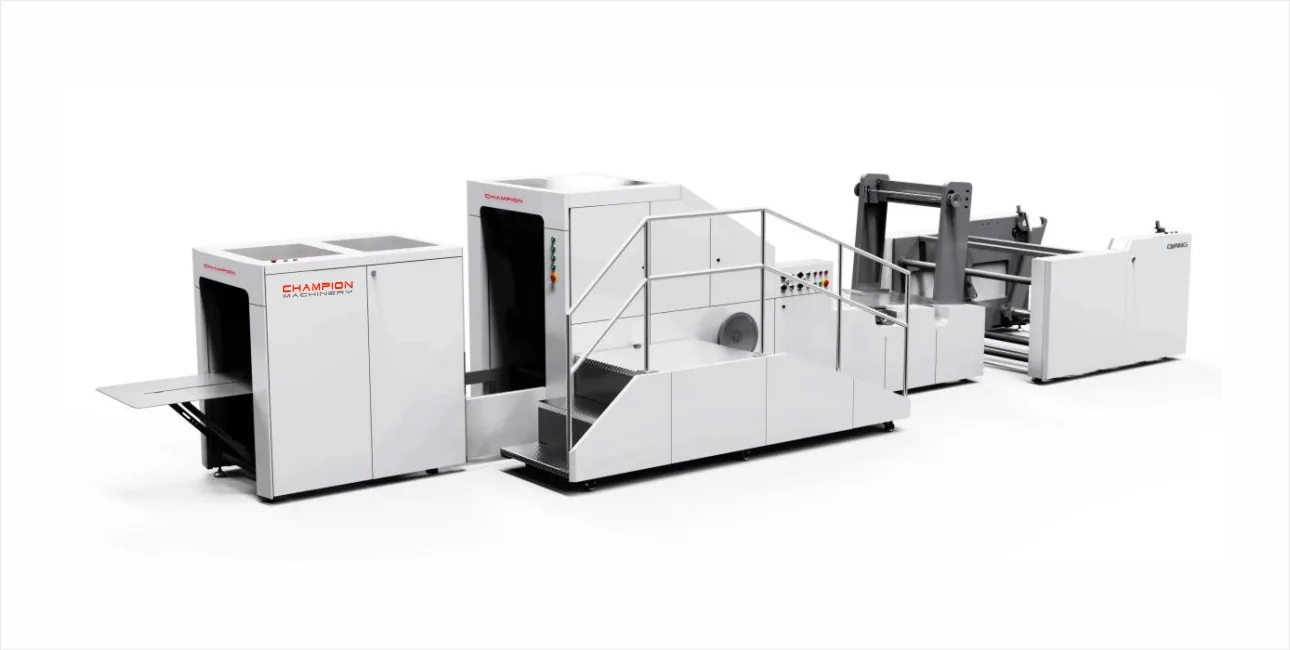

CMFP-220
Compact high-speed roll-fed square bottom machine for food, bakery, coffee, tea, pharmacy, and takeaway paper bags without handles.
- Square bottom food and bakery bags
- Coffee, snack, pharmacy, and takeaway bags
- Machine type
- Square bottom roll-fed, no handle
- Cutting length
- 190-430 mm
- Bag width
- 80-220 mm
- Bottom width
- 50-120 mm
- Paper weight
- 45-150 gsm
- Production speed
- 180-220 bags/min, max 280 pcs/min
- Power
- 380V 3Phase 15 kW
- Machine size
- 8600 x 2600 x 1900 mm
Wider square bottom series

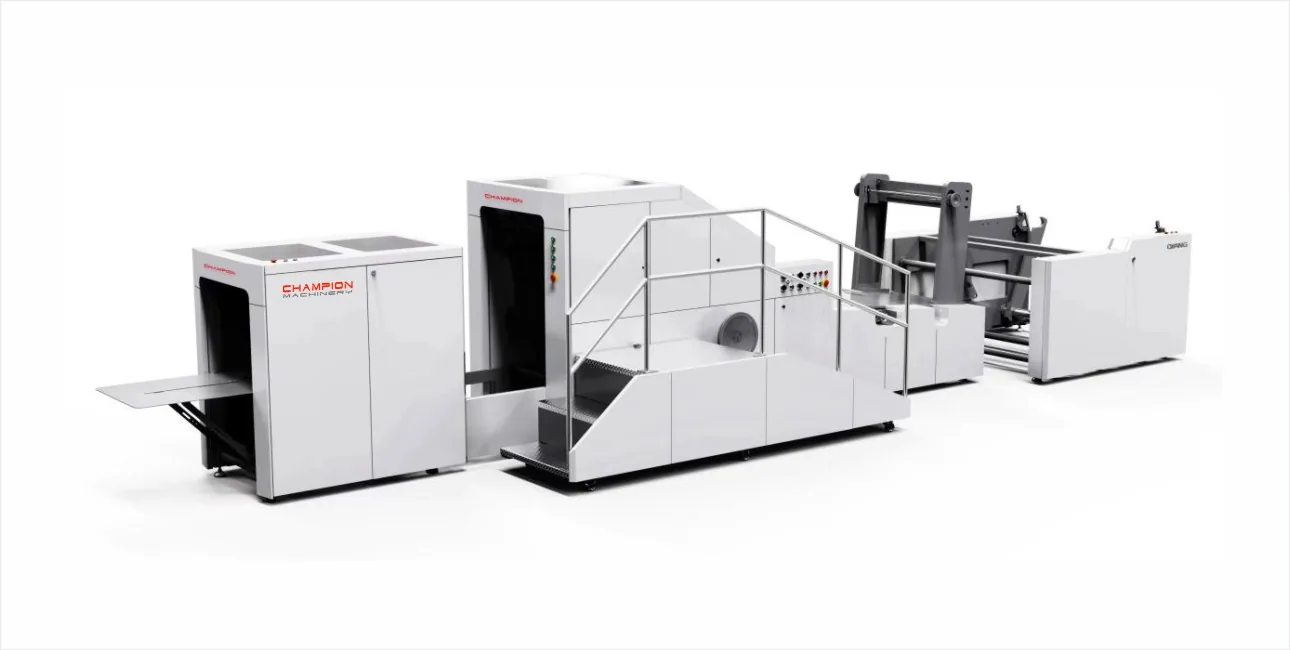

CMFP-330
Roll-fed square bottom machine for wider no-handle paper bags used in food service, groceries, bakery, and general packaging.
- Wider square bottom paper bags without handles
- Food, grocery, bakery, and takeaway packaging bags
- Machine type
- Square bottom roll-fed, no handle
- Cutting length
- 280-530 mm tube length
- Bag width
- 150-330 mm
- Bottom width
- 80-180 mm
- Paper weight
- 80-140 gsm
- Production speed
- 200 pcs/min
- Power
- 11 kW
- Machine size
- 9500 x 2600 x 1900 mm
YASEN machine models
Automatic Production Lines
Product selector
Automatic production line

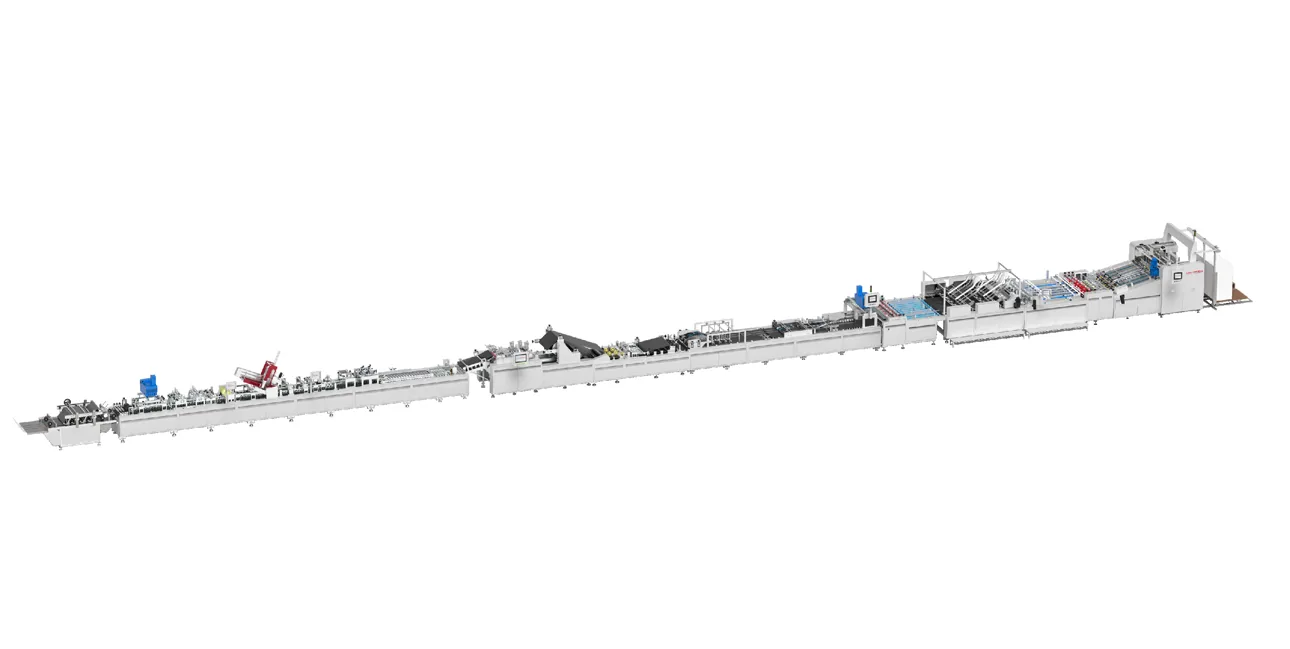

CMAO1400-2SP-4C-R
Fully automatic luxury paper bag production line for two-sheet or single-sheet feeding with four top cards and one bottom card placing.
- Luxury shopping bags
- Gift, apparel, and boutique packaging bags
- Series
- Automatic Production Lines
- Layout
- I-layout production line
- Product type
- Luxury paper bag line
- Process
- Top card, tube forming, bottom card, bottom forming
- Paper material
- Kraft, white card, coated paper
- Application
- Luxury goods, apparel, gifts, shopping bags
- Automation
- Fully automatic
- Model source
- YASEN product sheet
Automatic production line

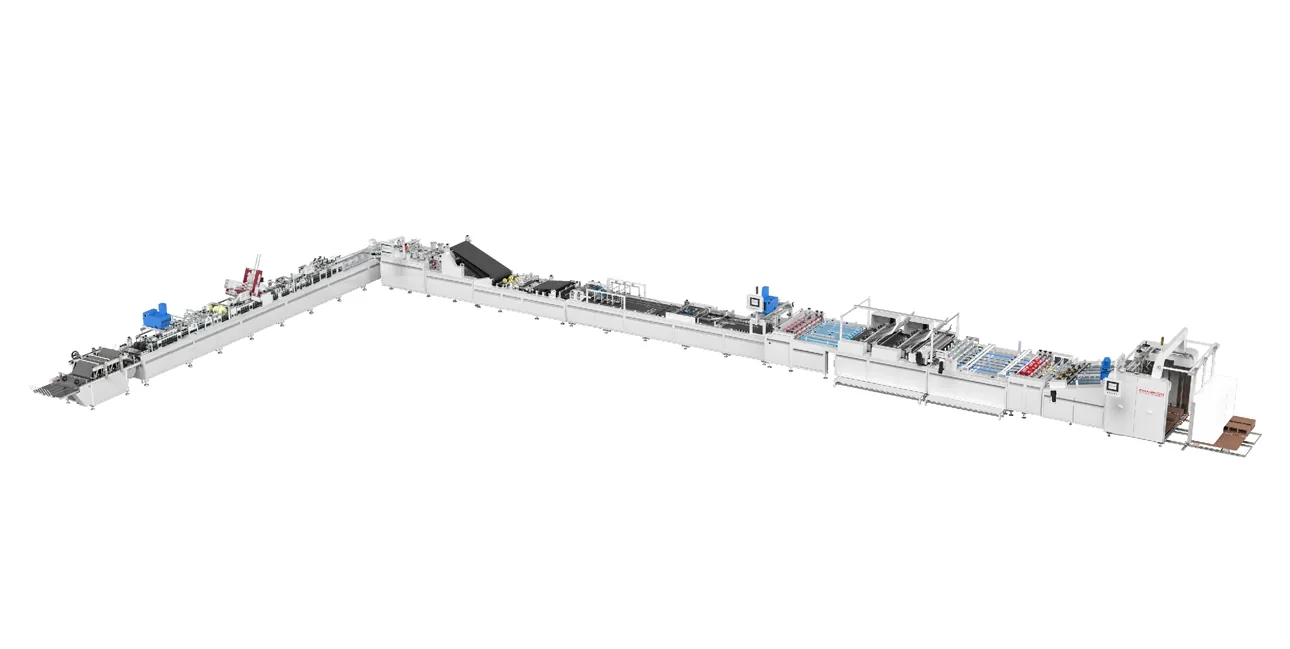

CMAL1400-2SP-4C-R
L-layout automatic luxury paper bag production line designed for efficient double-ply structured paper bag manufacturing.
- Double-ply luxury bags
- Retail and gift packaging bags
- Series
- Automatic Production Lines
- Layout
- L-layout production line
- Product type
- Luxury paper bag line
- Process
- Double-ply forming and card placing
- Paper material
- 120-350 gsm compatible materials
- Application
- Luxury, apparel, gifts, shopping bags
- Automation
- Fully automatic
- Model source
- YASEN product sheet
Automatic production line

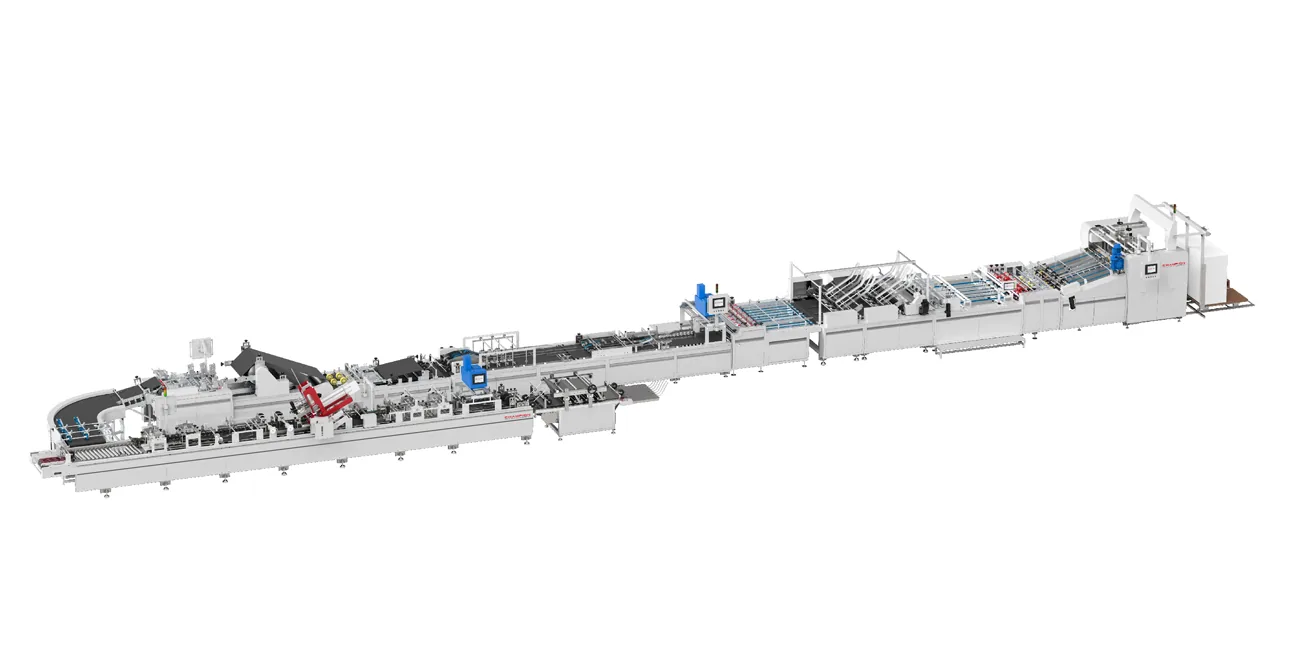

CMAU1400-2SP-4C-R
U-layout automatic production line for high-end paper bags requiring top card and bottom card placement.
- High-end carrier bags
- Luxury and customized paper bags
- Series
- Automatic Production Lines
- Layout
- U-layout production line
- Product type
- Luxury paper bag line
- Process
- Sheet feeding, top card, bottom card, forming
- Paper material
- 120-351 gsm compatible materials
- Application
- Premium retail and gift packaging
- Automation
- Fully automatic
- Model source
- YASEN product sheet
YASEN machine models
A+B Production Lines
Product selector

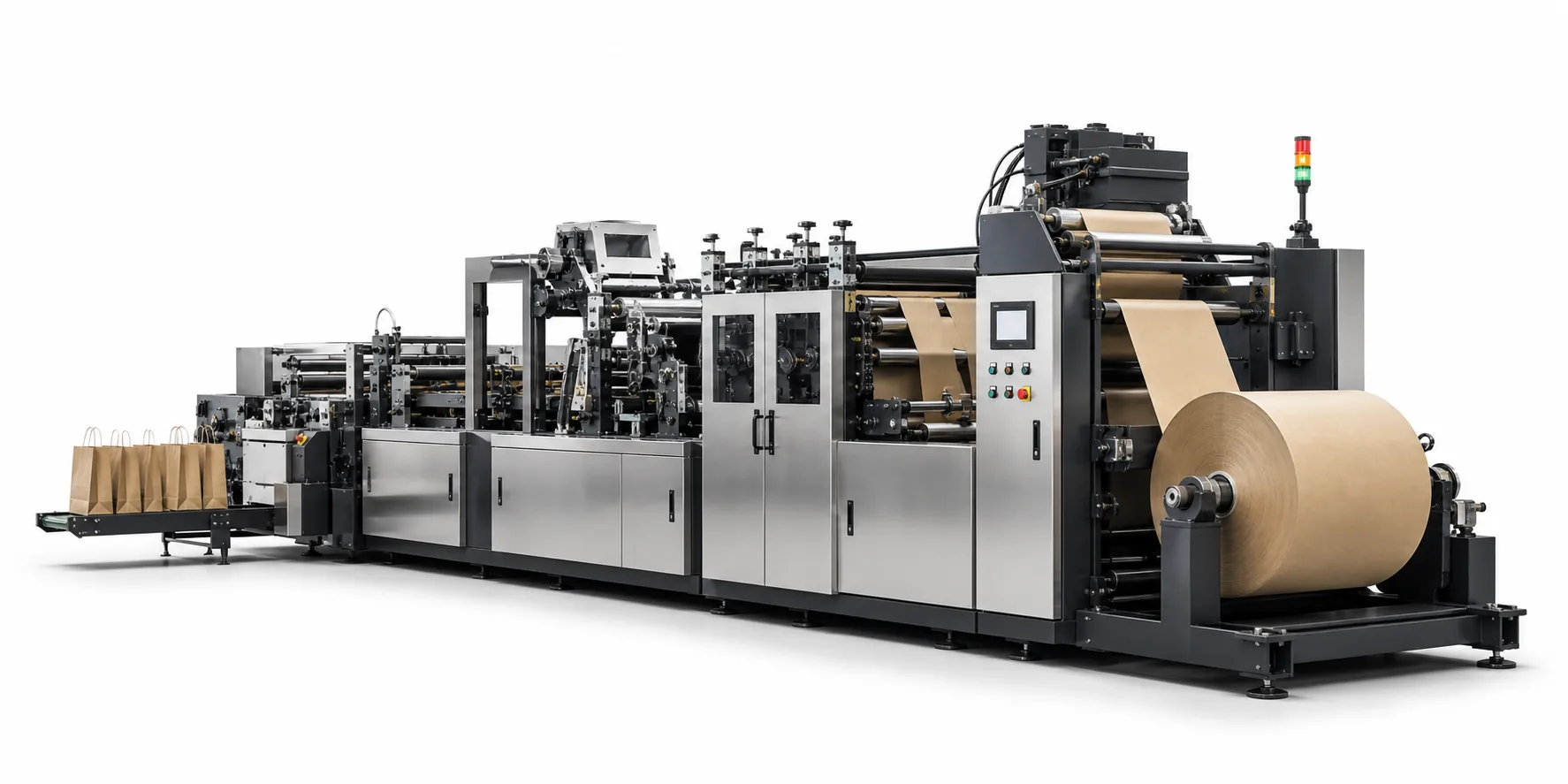

A+B production line

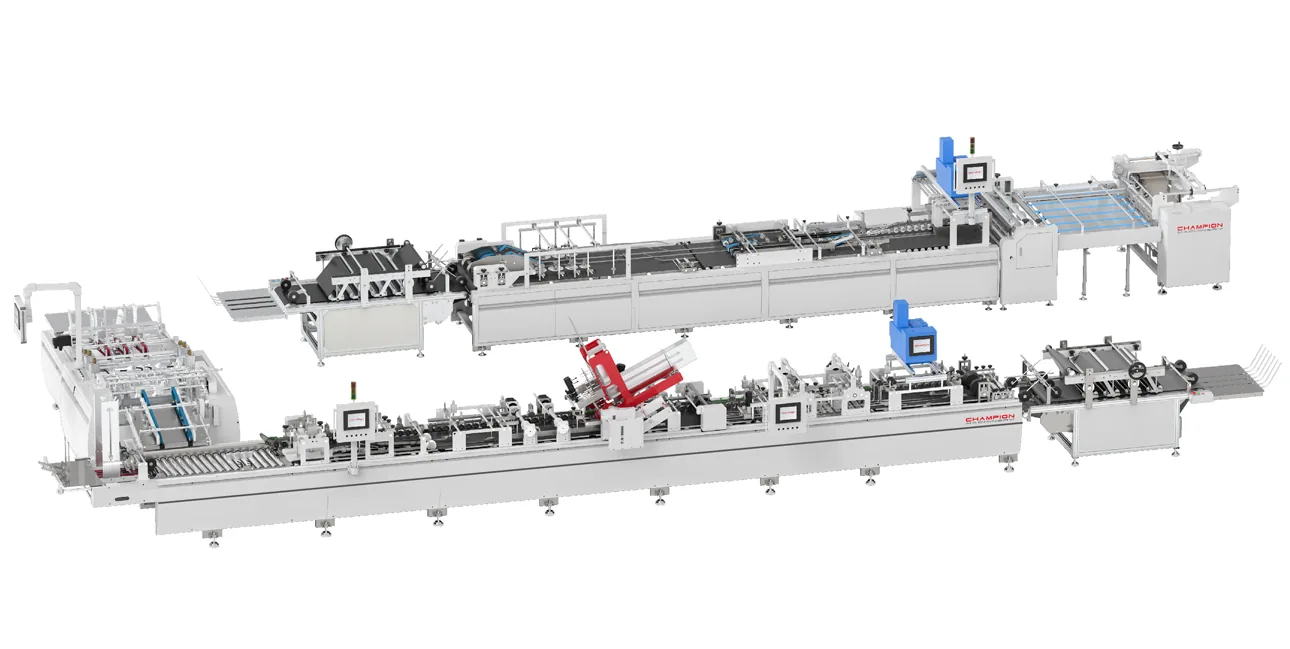

CMTF-1100AT + CMBF-420A / 520A + CMBS-1000RS
Sheet-fed paper bag production line combining A and B modules for flexible, efficient bag forming with automatic bottom card pasting.
- Sheet-fed shopping bags
- Gift, apparel, and custom paper bags
- Series
- A+B Production Lines
- Machine type
- Sheet-fed paper bag line
- Module A
- Tube forming
- Module B
- Bottom folding and gluing
- Card option
- Auto bottom card pasting
- Application
- Shopping, clothing, gift bags
- Automation
- Modular automatic line
- Model source
- YASEN product sheet
A+B production line
CMTF-1100AT + CMBF-420A / 520A + CMBS-600AC
Sheet-fed A+B production line for single-sheet paper bags, designed for flexible bag sizes and stable production.
- Single-sheet paper bags
- Retail and gift packaging bags
- Series
- A+B Production Lines
- Machine type
- Sheet-fed paper bag line
- Module A
- Tube forming
- Module B
- Bottom folding and gluing
- Production mode
- A+B modular workflow
- Application
- Small, medium, large batch production
- Automation
- Modular automatic line
- Model source
- YASEN product sheet
YASEN machine models
A-Group Tube Forming Machines
Product selector
A group tube forming machine

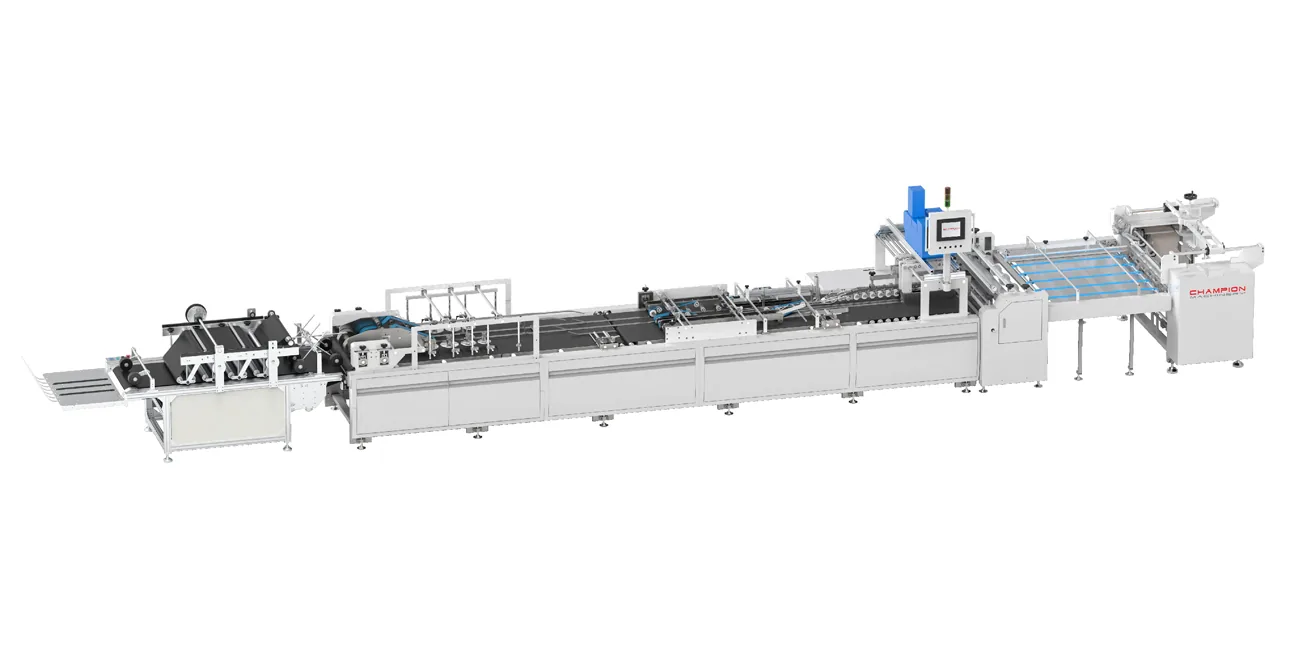

CMTF-1100
Paper bag tube forming machine for gluing creased sheets into tube structures before bottom forming.
- Shopping bag tubes
- Gift and food packaging bag tubes
- Series
- A-Group Tube Forming Machines
- Machine type
- Paper bag tube forming
- Process
- Feeding, alignment, gluing, forming
- Material
- Kraft, coated, laminated paper
- Application
- Shopping, gift, apparel, food bags
- Output
- Prefabricated paper bag tube
- Control
- Variable speed operation
- Model source
- YASEN product sheet
A group tube forming machine

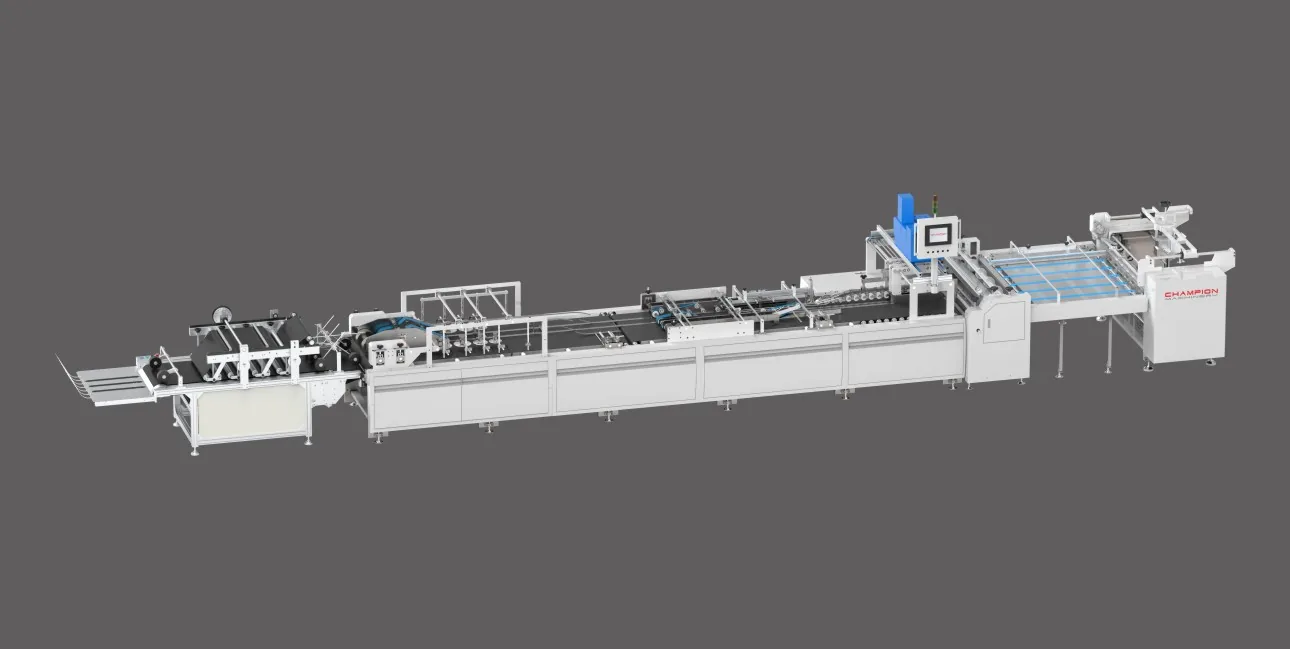

CMTF-1100AT
Tube forming machine with gusset function for paper bag tube production and stable side-gusset forming.
- Gusseted bag tubes
- Retail and luxury paper bag tubes
- Series
- A-Group Tube Forming Machines
- Machine type
- Tube forming with gusset
- Process
- Feeding, gluing, gusset folding, pressing
- Material
- 150-350 gsm paper range
- Application
- Shopping, gift, apparel bags
- Output
- Gusseted paper bag tube
- Control
- Servo and PLC-assisted adjustment
- Model source
- YASEN product sheet
A group tube forming machine

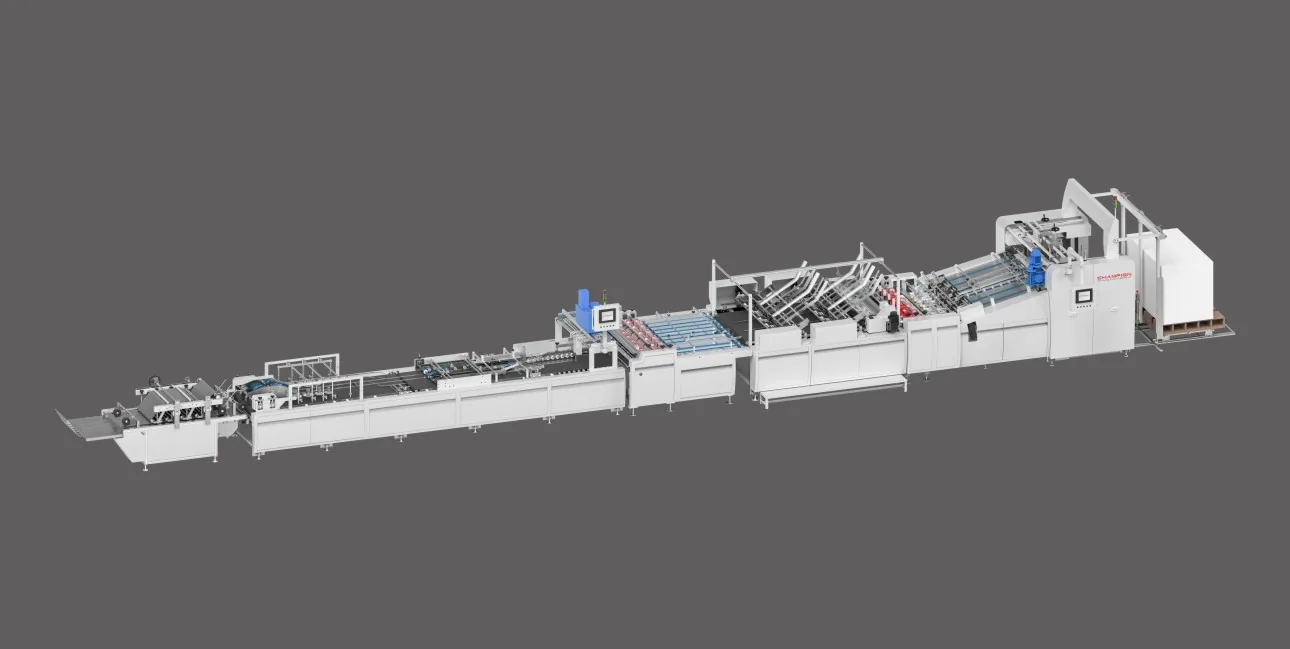

CMTF-1200AT
Automatic sheet-fed paper bag tube forming machine for efficient tube forming with gusset support.
- Sheet-fed paper bag tubes
- Premium shopping and gift bags
- Series
- A-Group Tube Forming Machines
- Machine type
- Automatic sheet-fed tube forming
- Process
- Automatic feeding, tube forming, gusset folding
- Material
- 120-350 gsm compatible materials
- Application
- Luxury, apparel, gift, shopping bags
- Output
- Paper bag tube for bottom forming
- Automation
- Automatic operation
- Model source
- YASEN product sheet
Data is taken from the YASEN product sheet. Final speed depends on bag size, handle configuration, printing mark tracking, paper quality, and machine options.
Built for every bag you make
Applications by bag type

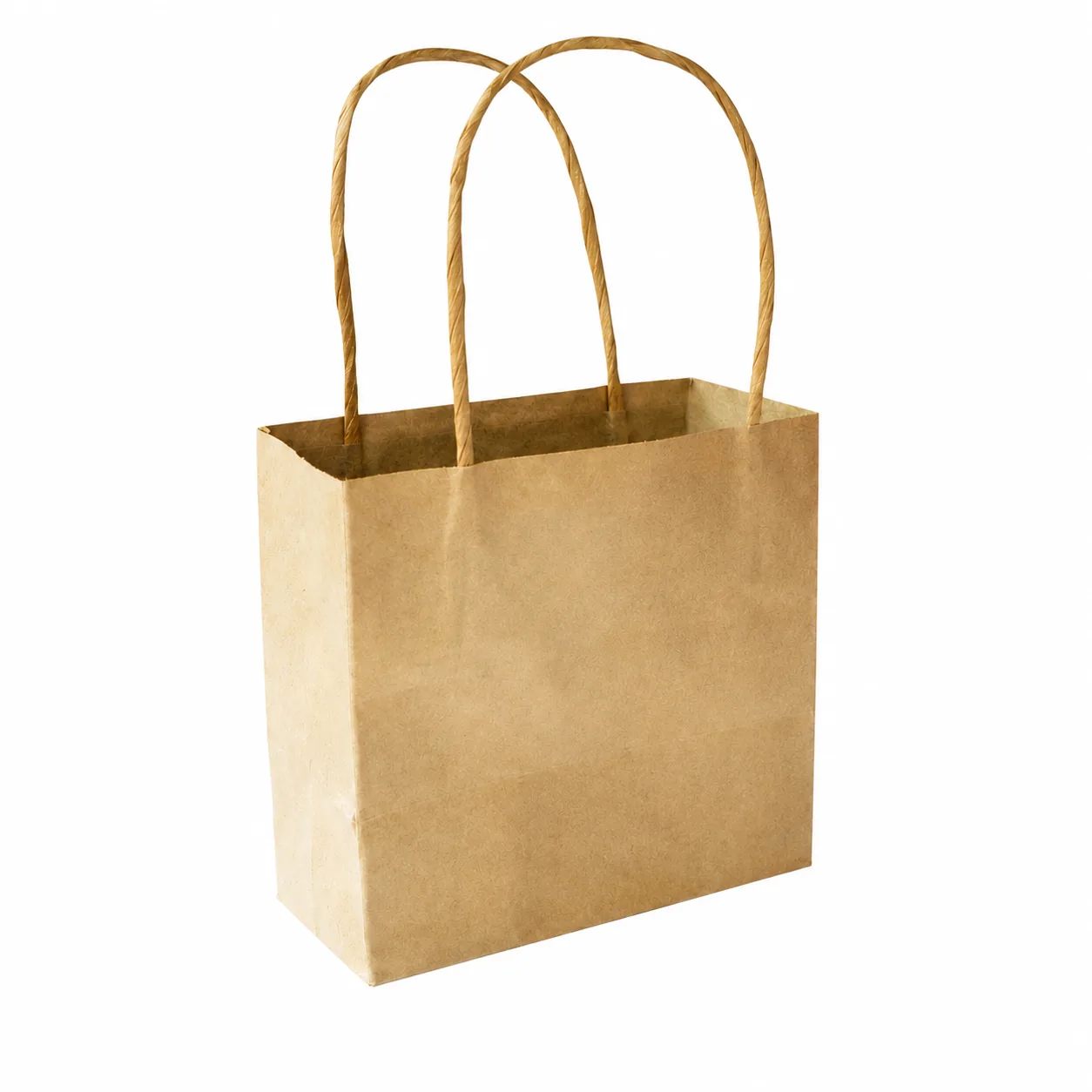

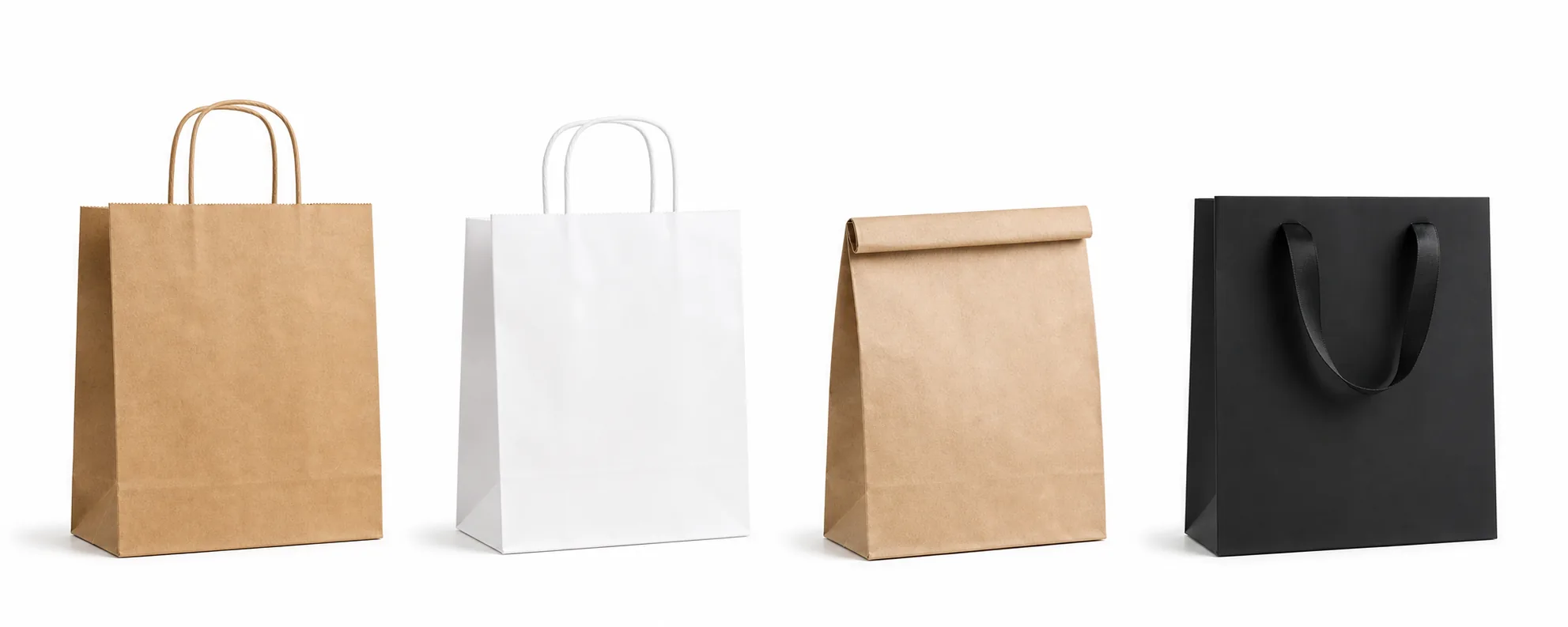

Shopping Bags
Twisted rope, round rope, or flat paper handle bags for retail and brand packaging.

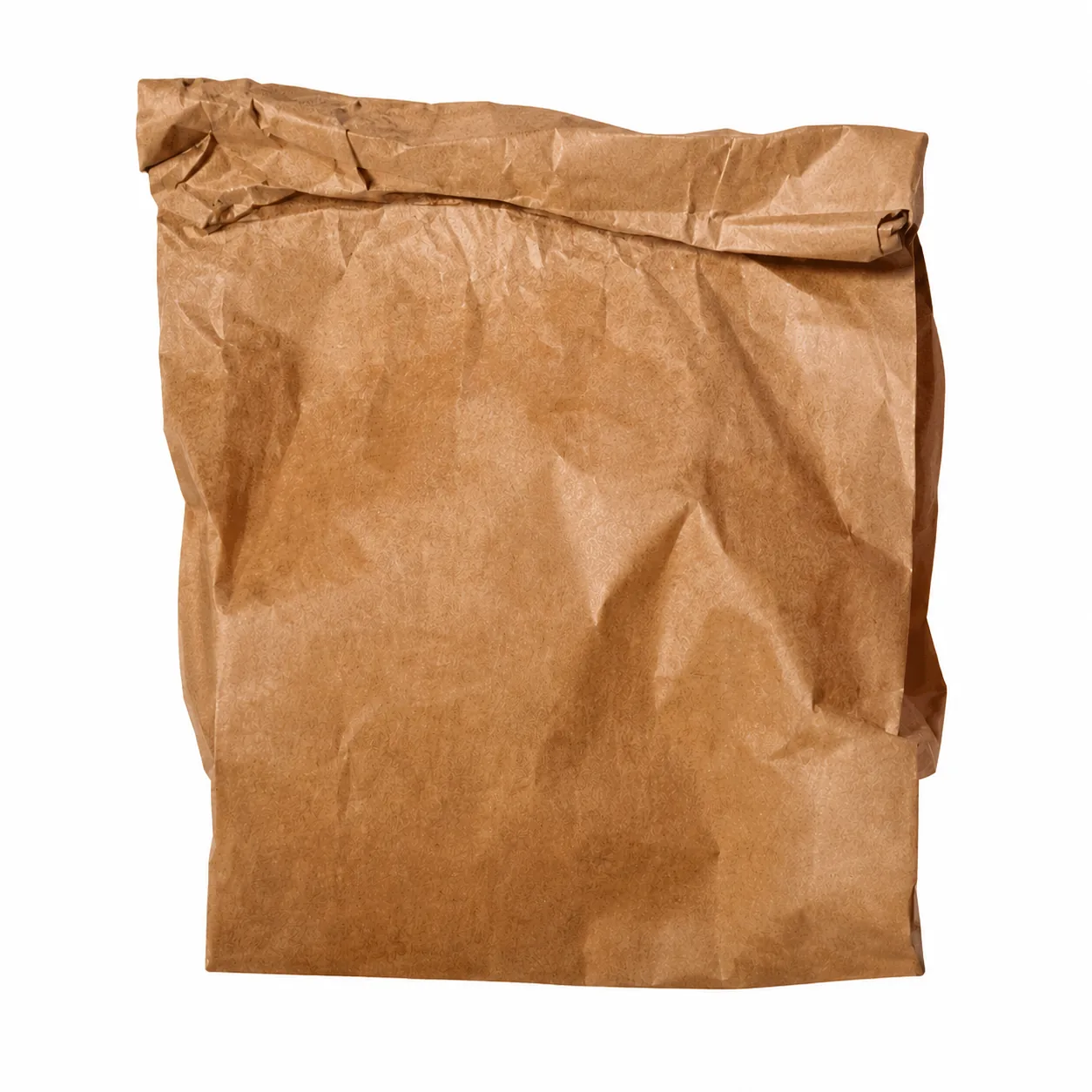

Food & Bakery Bags
Fast square bottom bags for snacks, bread, dried fruit, coffee, tea, and takeaway use.
Gift Bags
Paper bags for candy, tea, wine, apparel, and boutique presentation packaging.

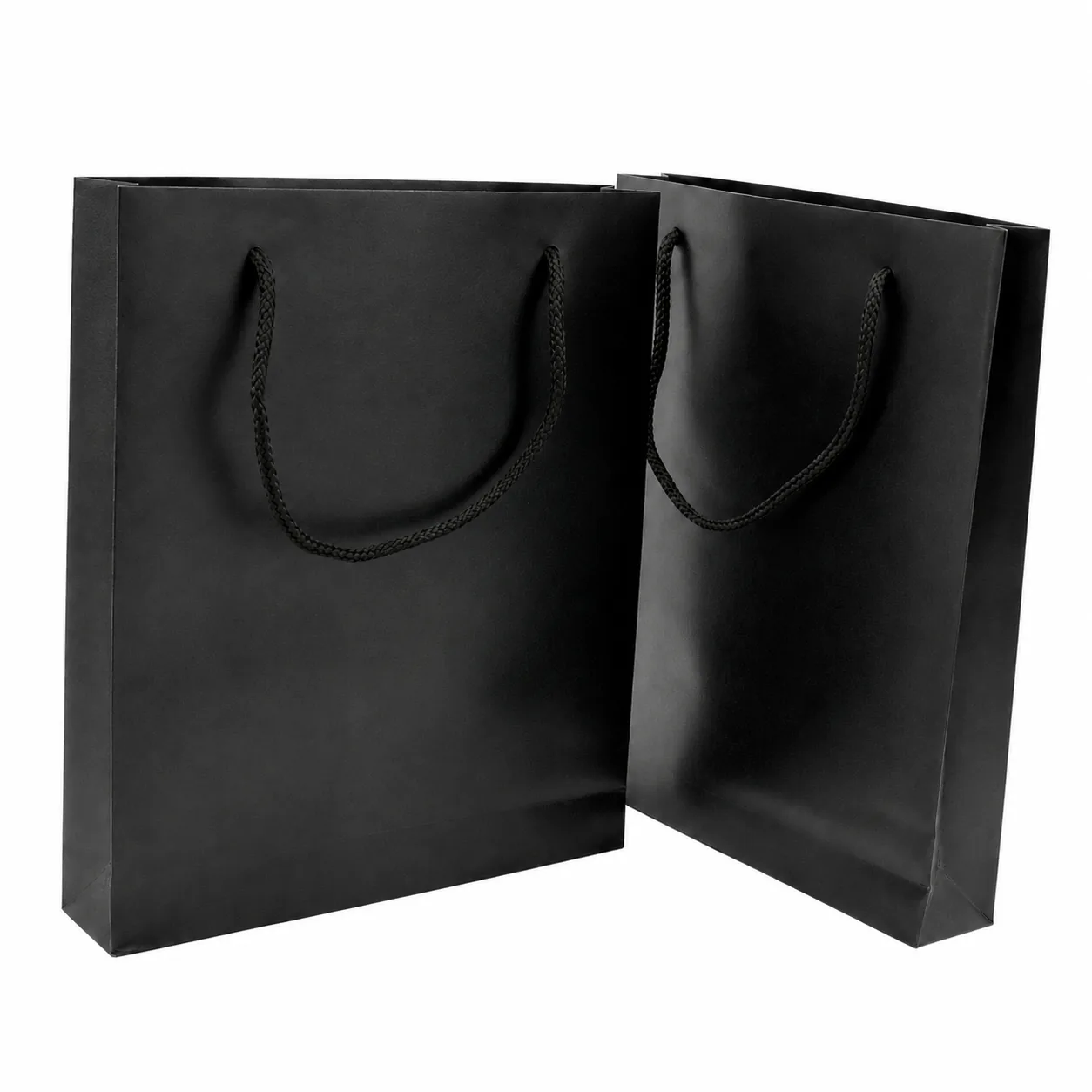

Luxury Paper Bags
Sheet-fed or double-sheet lines with top card, bottom card, ribbon, and handle options.
15+ YearsFocused paper bag machinery experience
Global ExportProject support for international markets
Factory BuiltManufacturing and configuration review
Technical ReviewMachine selection based on bag requirements
Process Know-howFrom feeding and forming to finished bag output
After-sales SupportService guidance for commissioning and operation
Buyer Questions
FAQ
What is the typical lead time?
Lead time depends on the machine model, handle unit, printing unit, and final technical confirmation.
Can the machine run different bag sizes?
Yes. CM-330T, CM-450AT, CM-450ATF, CMFP-220, and CMFP-330 each support a defined bag width, cutting length, and bottom width range.
What type of paper can be used?
Depending on model, the machines can process kraft paper, coated or laminated paper, and white board paper within the specified gsm range.
Is installation and training provided?
Installation, commissioning, operator training, and changeover guidance should be confirmed with YASEN based on the final line configuration.
Which process steps can be integrated?
Typical integrated steps include paper feeding, top cutting, handle gluing and pasting, side gluing, tube forming, tube cutting, bottom creasing, bottom opening, bottom gluing, bottom forming, and automatic collection.
